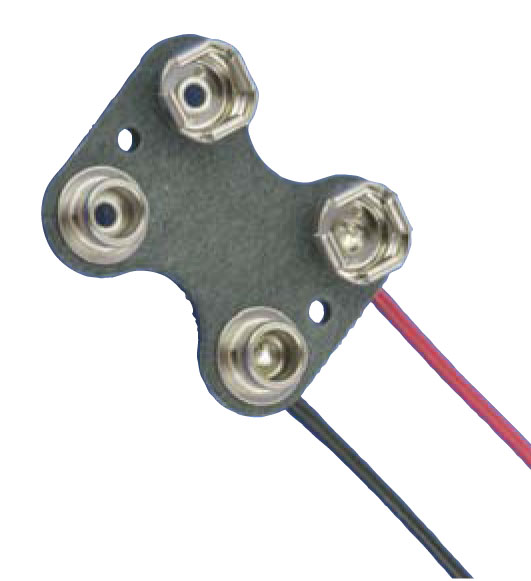

This dual battery strap is pre-wired for connecting two 9 Volt batteries. Base made from fiber material with steel, nickel plated contacts. Wires have tinned copper conductors, PVC insulation and the ends are stripped for easy connection. Wires meet UL/CSA #1061 requirements.
Unit of Measure

Specifications

Type

 N/A Dual
Lead Length1 N/A 7.0 in177.8 mm

Contact Material

 N/A Steel

Contact Plating

 N/A Nickel

Wire Size

 N/A #22 AWG

Wire Conductor Type

 N/A Prebond

Wire Conductor Strand

 N/A 7/30

End Strip Length

 N/A 0.375 in9.5 mm

End Strip Coating

 N/A Tin

Battery Voltage

 N/A 9 V

Wire Rating

 N/A UL/CSA #1061

Certification

 N/A ISO 9001 RoHS Compliant
  • 1 Tolerance on lead length: ±0.250 in (6.4 mm)
