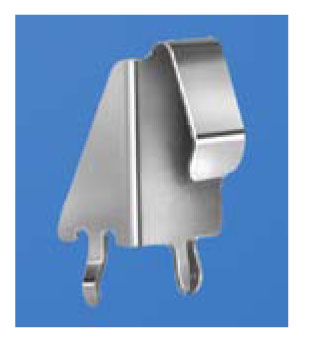

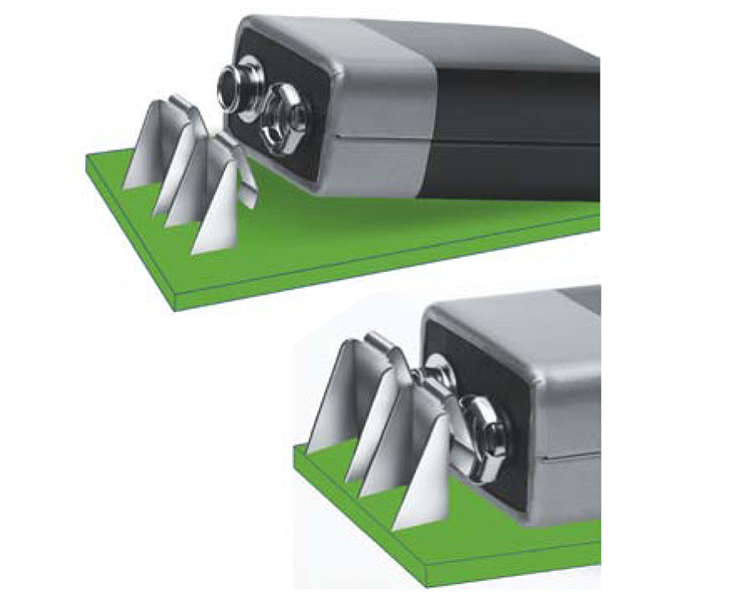

  • Ideal "Slide-In" contact for easy installation and removal of 9 Volt batteries

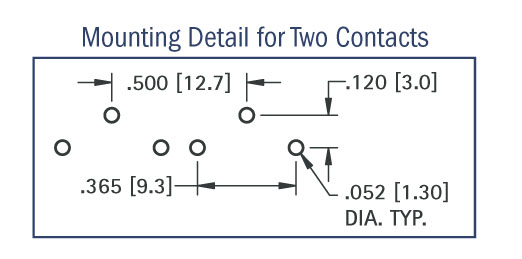

  • Space saving design installs directly onto the PC board
  • Suitable for 0.062 (1.57) to 0.093 (2.36) thick PC boards
  • Reliable leaf-spring assures low contact resistance
  • Ideal for self-contained battery compartments
  • Snap-in mounting legs holds contact secure during wave soldering
Unit of Measure

Specifications

Material

 N/A Spring Steel

Plating

 N/A Tin-Nickel

Material Thickness

 N/A 0.012 in0.30 mm

Battery Voltage

 N/A 9 V

Suitable Printed Circuit Board Thickness

 N/A 0.062 to 0.093 in1.57 to 2.36 mm

Certification

 N/A ISO 9001 RoHS Compliant
