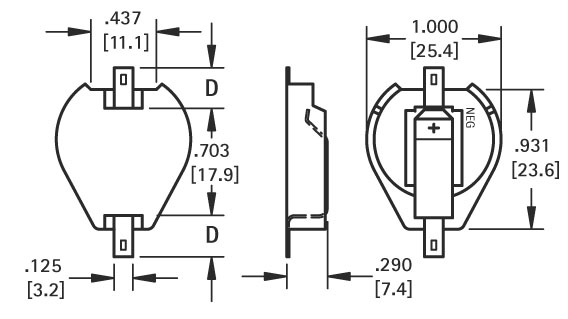

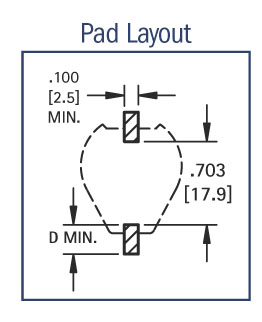

Pad Size D |
N/A 0.278 in7.1 mm |
Battery Reference |
N/A CR2320 CL2325 DL2330 CR2335 |
Plate Material |
N/A Tin-Nickel |
Contact Material Thickness |
N/A 0.015 in0.38 mm |
Contact Material |
N/A Steel |
Base Material |
N/A Nylon 46 |
Operating Temperature |
N/A -60 to +293 ºF-50 to +145 ºC |
Mount Type |
N/A Surface |
Certification |
N/A UL Rated 94V-0 ANSI/EIA-481 ISO 9001 RoHS Compliant |
Package Type |
N/A Bulk |
