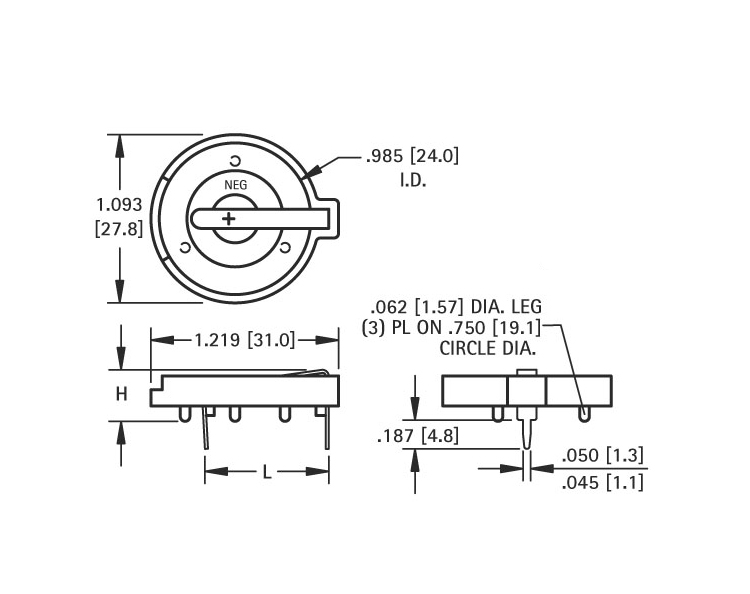

Dimension C |
N/A 0.074 in1.9 mm |
Dimension H |
N/A 0.503 in12.8 mm |
Dimension L |
N/A 0.805 in20.5 mm |
Number of Cells |
N/A (1) 2477 (2) 2430 |
Battery Reference |
N/A CR2430 CL2430 BR2450 CR2477 |
Contact Material Thickness |
N/A 0.020 in0.50 mm |
Contact Material |
N/A Spring Steel Tin-Nickel Plate |
Base Material |
N/A PBT |
Operating Temperature |
N/A -60 to +293 ºF-50 to +145 ºC |
Mount Type |
N/A Thru Hole |
Certification |
N/A UL Rated 94V-0 ISO 9001 RoHS Compliant |
Package Type |
N/A Each |
