Plate Material |
N/A Tin-Nickel |

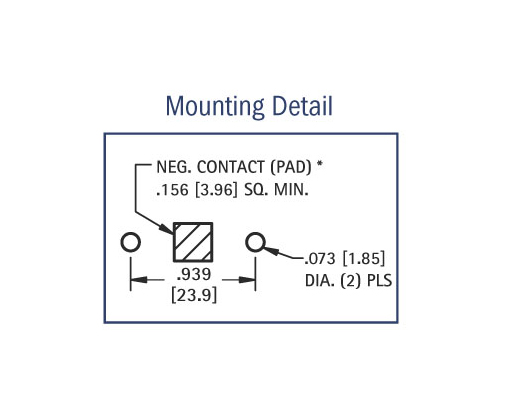

Mount Type |
N/A Thru Hole |

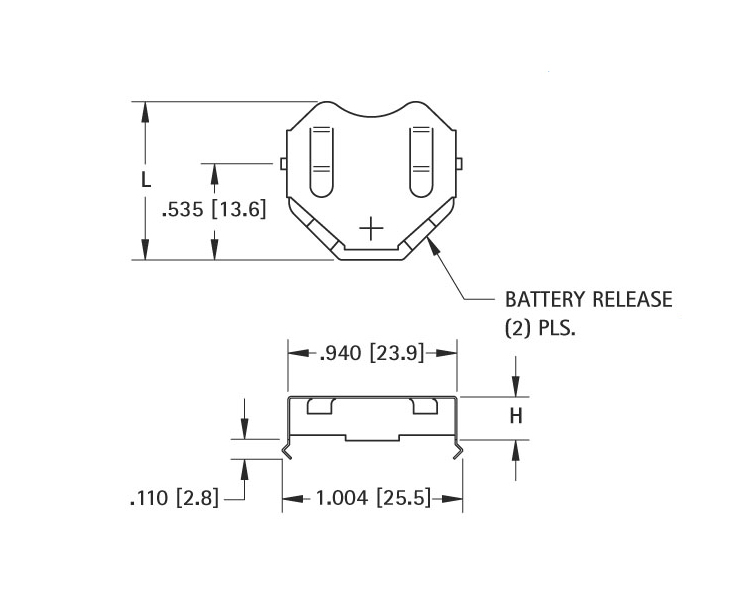

Dimension L |
N/A 0.890 in22.6 mm |
Dimension H |
N/A 0.156 in4.0 mm |
Battery Reference Voltage |
N/A 3 V6 V |
Number of Cells for 6 Volt Battery |
N/A (2) 2012 2016 |
Number of Cells for 3 Volt Battery |
N/A (1) 2020 2025 |
Contact Material Thickness |
N/A 0.10 in0.25 mm |
Contact Material |
N/A Phosphor Bronze |
Insulator Temperature |
N/A High |
Insulator Material |
N/A Nylon 46 |
Certification |
N/A UL Rated 94V-0 ISO 9001 RoHS Compliant |
Package Type |
N/A Bulk |
